• A joint (supination and pronation)
  • Anatomical reduction is a must to preserve function

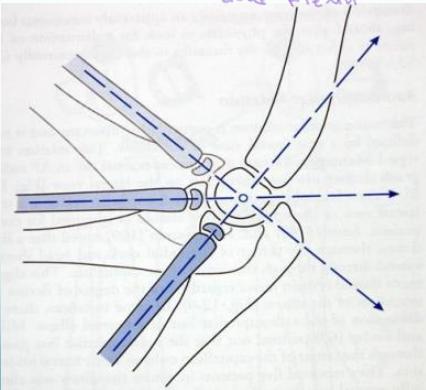

Radio-Capitellar Line:

  • A line drawn through the center of the radial neck should pass through the center of the capitellum in all views and in both Extension and Flexion
  • If not: dislocated radial head

_page_39_Picture_3.jpeg _page_39_Picture_4.jpeg


Treatment

  • Nondisplaced: Closed reduction, casting, close regular follow-ups
  • Unstable or re-displace in cast: Closed reduction, elastic nail
  • When ORIF: plating

Age consideration: 14-15 years old - may need plating


Closed Reduction and Casting

  • If reduction is stable. Needs close regular follow-ups
  • More stable when fractures are not at same level

_page_36_Picture_3.jpeg _page_36_Picture_4.jpeg

Intramedullary Elastic Nail

  • 2 fractures at the same level = 100% unstable
  • When unstable or re-displaces in cast

_page_37_Picture_3.jpeg Teddy Slongo, Bern, Switzerland

Plating


Monteggia

A Monteggia fracture is defined as a proximal 1/3 ulna fracture with an associated radial head dislocation.

Galeazzi

A Galeazzi fracture is a distal 1/3 radial shaft fracture with an associated distal radioulnar joint (DRUJ) injury.
