Radiology in Gynecology

Sep 19, 20255 min read

Radiology in Gynaecology

By Dr. Mona Ahmed

1st Case

Mrs Huda is 28 years old PG. GA is 36 weeks came for routine follow up. Has no complain was regular follower. you did US you find single cephalic baby fundal placenta with –ve FH.

What is your diagnosis?

IUFD

What are other things you may suspect to be found in ultrasound?

Robert sing./ Buda sign /Spalding sign /oligohydra

Is there any other radiological tools you c Xray

2nd Case

Sammar is 18 years old. came c/o primary Amenorrhoea

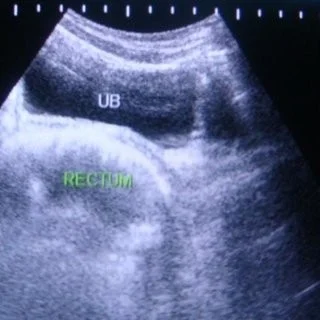

you did ultrasound you find no uterus

What is other things you will look & examination

What are other things you will look for?

What is next step to confirm your diagnosis?

MRI Done Revealed

absent uterus and ovaries with short vagina (MERK). No associated renal anomalies

How will you manage?

  1. Explore diagnosis
  2. Reassurance
  3. Hormonal treatment(Induce pupperty)(HRT)
  4. Surgical treatment.

What is Medical Imaging?

  • MEDICAL IMAGING: is the technique and process used to create images of the human body.
  • Aiming
    • for clinical purposes (medical procedures seeking to reveal, diagnose, or examine disease)
    • or medical science (including the study of anatomy and physiology)

Imaging Methods in Gynaecology

  • Ultrasonography
  • Computed tomography (CT)
  • Magnetic resonance imaging (MRI)
  • Conventional radiology (PET)
  • Angiography.
  • Hysterosalpingogram (HSG).
  • Cystourethrogram.
  • Hysteroscopy.
  • X-Ray.

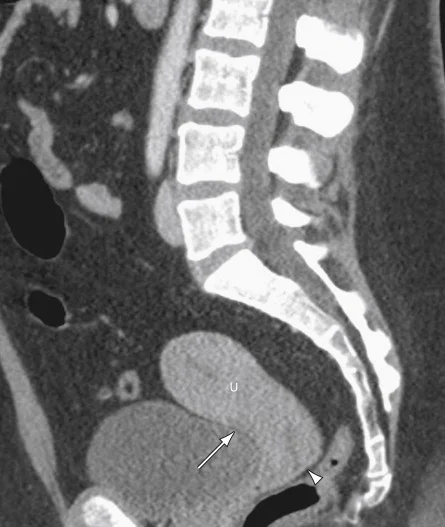

CT Scan

  • The diagnostic quality of pelvic scans is improved with use of oral & IV contrast.
  • Oral contrast media is used to differentiate between the bowel and adjacent structures.
  • IV contrast media used for bloc mass & lymph nodes.
  • The fallopian tubes & ovaries

CT Scan

appropriate for detection of

  • ovarian tumors
  • less appropriate for examination of uterus

MRI

Advantages over CT scan and ultrasonography:

  • non-invasiveness.
  • Without repositioning the patient.
  • More sensitivity to flowing

MRI

  1. Study of normal uterus and ad
  2. Myoma.
  3. Adenomyosis.
  4. Congenital uterovaginal anomalies.
  5. Gynaecological cancers.
  6. Pregnancy --- complicated by
  7. Endometriosis.
  8. Retroperitoneal lymph node.

Contraindications for MRI

  • prosthetic heart valves
  • Claustrophobia.
  • Pacemakers.
  • Contrast allergy.
  • Body weight (MRI tables not suite overweight).

Conventional Radiology Uses

  • Calcifications
  • Gas distribution
  • Skeleton
  • IUD detection

Hysterosalpingography (HSG)

Application of contrast agent into the uterine cavity:

  • Indications :

    • infertility to assess :
      • uterine morphology
      • tubal patency.

  • Contraindications :

    • Inflammation (active pelvic infection).
      • βœ“ Tumor
      • βœ“ Pregnancy
      • βœ“ Menses
      • βœ“ recent uterine or tubal surgery
      • βœ“

Technique

  • performed during proliferative phase
  • the menstrual cycle (days 6-12)
  • …when the endometrium is at its thinnest
  • patient in the lithotomy position
  • Vaginal speculum is inserted with the cervix in view
  • the cervix is cleaned with an aseptic solution

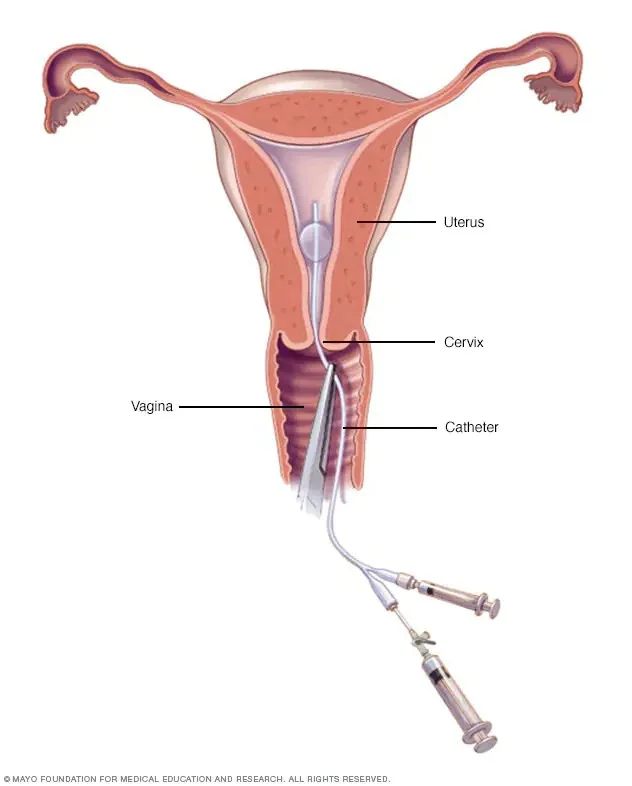

  • catheterization of the cervix.
  • Inject contrast.

Technique

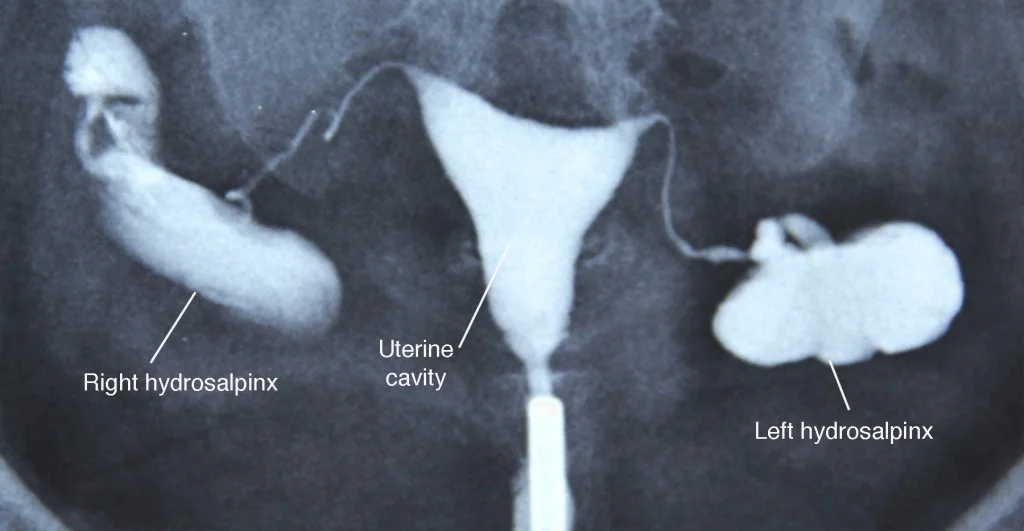

The image contains three X-ray images with labels and annotations.

  • The top-left image is labeled with the following text:
    • Right hydrosalpinx
    • Uterine cavity
    • Left hydrosalpinx

Complications

  • Common but self-limiting βœ“ abdominal cramping βœ“ spotting βœ“ venous extravasation
  • Rare but serious βœ“ pelvic infection βœ“ contrast reaction

Angiography

  • Angiograms can help in detecting blood vessel abnormalities.
  • Rarely indicated:
    • pathologic vascularization
    • Involvement of pelvic vessel

Potential Risks and Complications

  • Heart attack.
  • Stroke.
  • Injury to the catheterized artery.
  • Arrhythmias.
  • Allergic to the dye or medications.
  • Renal damage.
  • Infection.

Cystourethrogram

  • Dynamic test used to Demonstrate:
    • the lower urinary tract
    • Vesico-ureteral reflux.
    • bladder pathology
    • Congenital anomalies of bladder.

Indications

  • Children:
    • Urinary tract infection
      • voiding difficulties.
      • Baseline study prior to lower UT surgery.
  • Adults:
    • Trauma to urethra.
      • urethral stricture.
      • urethral diverticula.
      • UTI.
      • Reflux nephropathy prior to renal transplant of kidneys.

Complications

  • UTI.
  • Adverse reactions from contrast.
  • Trauma causing dysuria, frequency Hematuria and urinary retention.
  • perforation.
  • Catheterization of vagina or ectopic ureteral orifice.
  • Exposes gonads to some radiation.

Ultrasonography

  • Ultrasound is not substituting good history & a thorough examination.
  • Always do an abdominal scan before using the vaginal probe.

Role of Ultrasound

  • To examine the uterus, ovaries, cervix, vagina and adnexae.
  • Classification of a mass identified on other modalities eg:
    • solid.
    • cystic.
    • mixed.

Indications

  • Vaginal bleeding.
  • vaginal discharge.
  • Menorrhagia.
  • Metrorrhagia (irregular uterine bleeding).
  • Amenorrhea.

Limitations

  • Transvaginal scanning is contra-indicated:
    • if the patient is not yet sexually active.
    • or cannot provide informed consent.

Patient Preparation

  • Scan the patient in the first 10 days of the cycle.
  • Full bladder is required .(Abdominal US) Instruct the patient to drink 1 Litre of water.

Scanning Technique

Transabdominal

  • Full bladder
  • Panoramic view

For :

  • large masses
  • Abdominal organs
  • Lymph nodes

Transabdominal Approach

This is a generalised overview to identify the cervix, uterus and ovaries.

  1. Check for the orientation the uterus (anteverted V’s retroverted)
  2. Assess the uterine size and shape.

Transvaginal Ultrasound

  • Before inserting the probe
    • show the patient the TV probe and explain the procedure.

What to Detect in Gynaecology Ultrasound

Vaginal

  • Vaginal carcinoma
  • Haematocolpos (secondary to imperforate hymen or vaginal stenosis)
  • Foreign body

Cervical

  • Nabothian (retention) cysts
  • Polyps
  • Cervical fibroids

Uterine

  • Fibroids (leiomyoma)
    • submucosal
    • intramural

Endometrial

  • Endometrial Polyps.
  • Endometrial Carcinoma.
  • Endometrial hyperplasia.

Ovarian

  • Ovarian cysts
    • simple complex (haemorrhagic, corpus luteal, ruptured, septated).
  • Dermoid cyst.

Pouch of Douglas

  • Fluid
  • Pus
  • Blood

Fallopian Tubes

  • Normal fallopian tubes not seen, in a routine scan. Pathological tubes seen as dilated, truncated structures.
    • PID.
    • Pyosalynx.

A Pelvic Series Should Include

  • Uterus - longitudinal, transverse (with measurements)
  • Endometrial thickness measured in the longitudinal plane
  • Cervix
  • Both ovaries- longitudinal, transverse

Obstetric Ultrasound

Ultrasonography

  • Method of the first choice
    • Recognition of multiple pregnancy
    • vitality

2nd and 3rd Trimester

  • βœ” 3-5 week - gestational
  • βœ” 6. - 7. week - heart
  • Fetal biometry

Dead Fetus

  1. Absence of flow and heart movements
  2. Oligohydramnios
  3. Superposition of skull bones

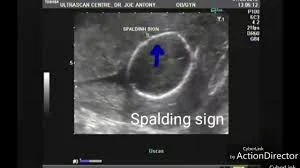

Spalding sign

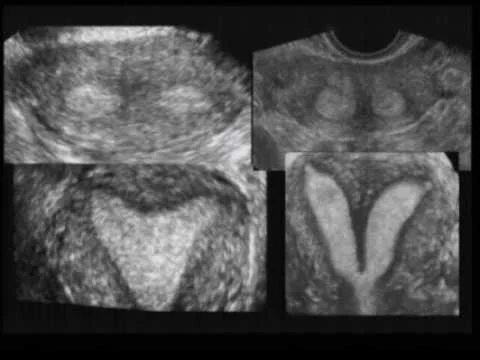

3D Ultrasound

  • most frequently used in ob
    • Commercial use

MRI

  • congenital disorders (in case of unclear US finding)
  • examination of mother (instead of X-ray or CT)

Plain Film

  • Dead fetus
    • Distortion of vertebral column
    • Superposition of skull bones
